TDXL2 | TX2L Sticks
Sign Cabinet Lighting System
Transform your signs into energy-efficient displays with US LED’s TX2L Sticks. The 24V system features ultra-long-life TDXL2 LED modules preassembled on durable, corrosion-resistant aluminum extrusions. This design reduces installation time and simplifies field labor. With 14 sizes and four CCT options, the TX2L sticks are the ideal for seamlessly upgrading virtually any cabinet and box sign.
Product Specs

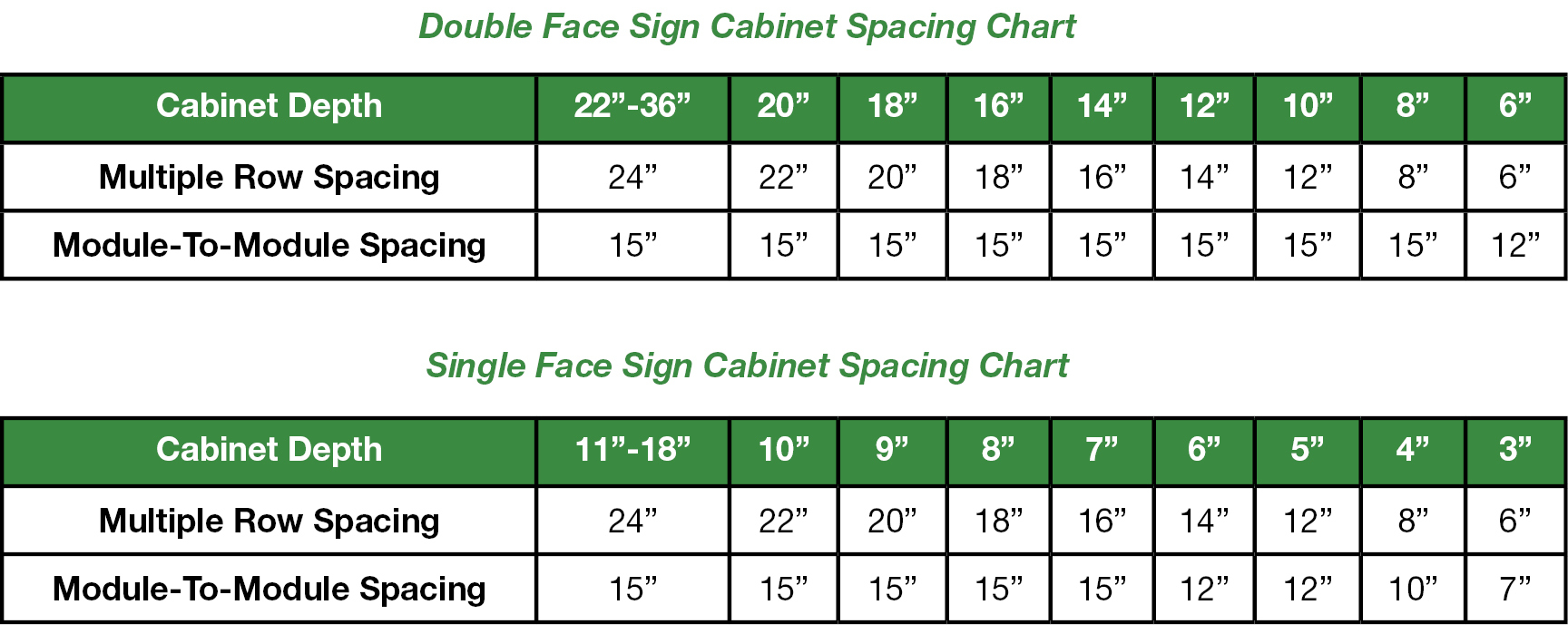

Spacing Chart
Product Details
Key Features
-
Direct fluorescent-to-LED upgrade simplifies cabinet and box sign retrofits.
-

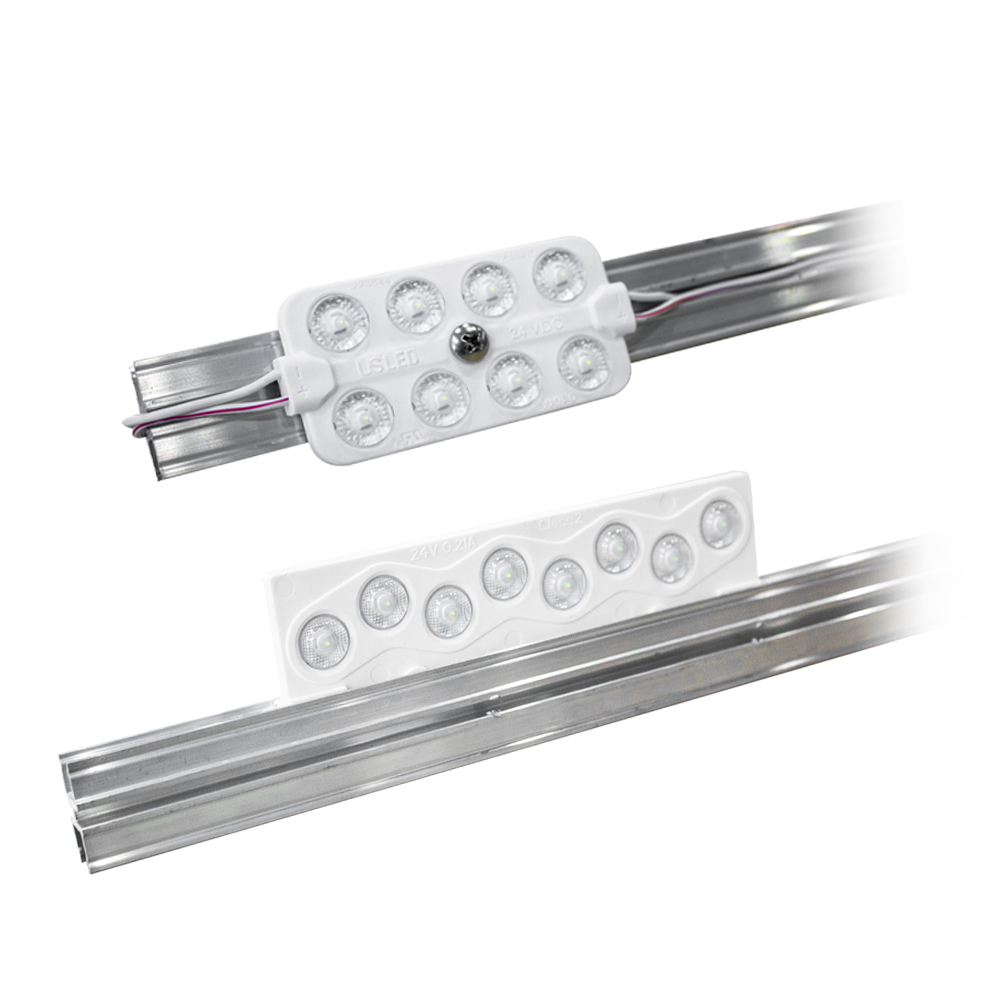

Single- or double-sided light sticks available.
-
Low-voltage 24V operation for efficient, reliable sign cabinet illumination.
-

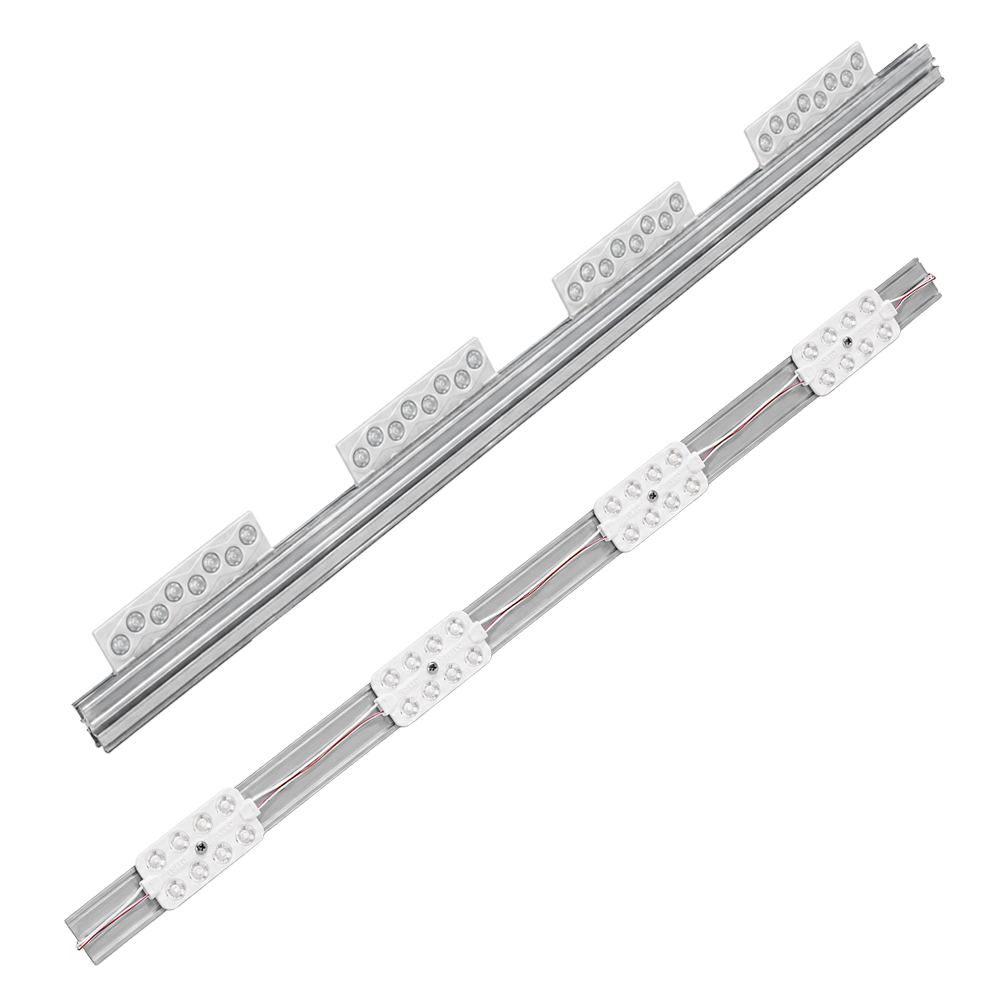

Preassembled sticks with TDXL2 modules reduce installation time and field labor.
Construction
-
Corrosion-resistant aluminum extrusions assembled in the USA provide a durable mounting platform.
-

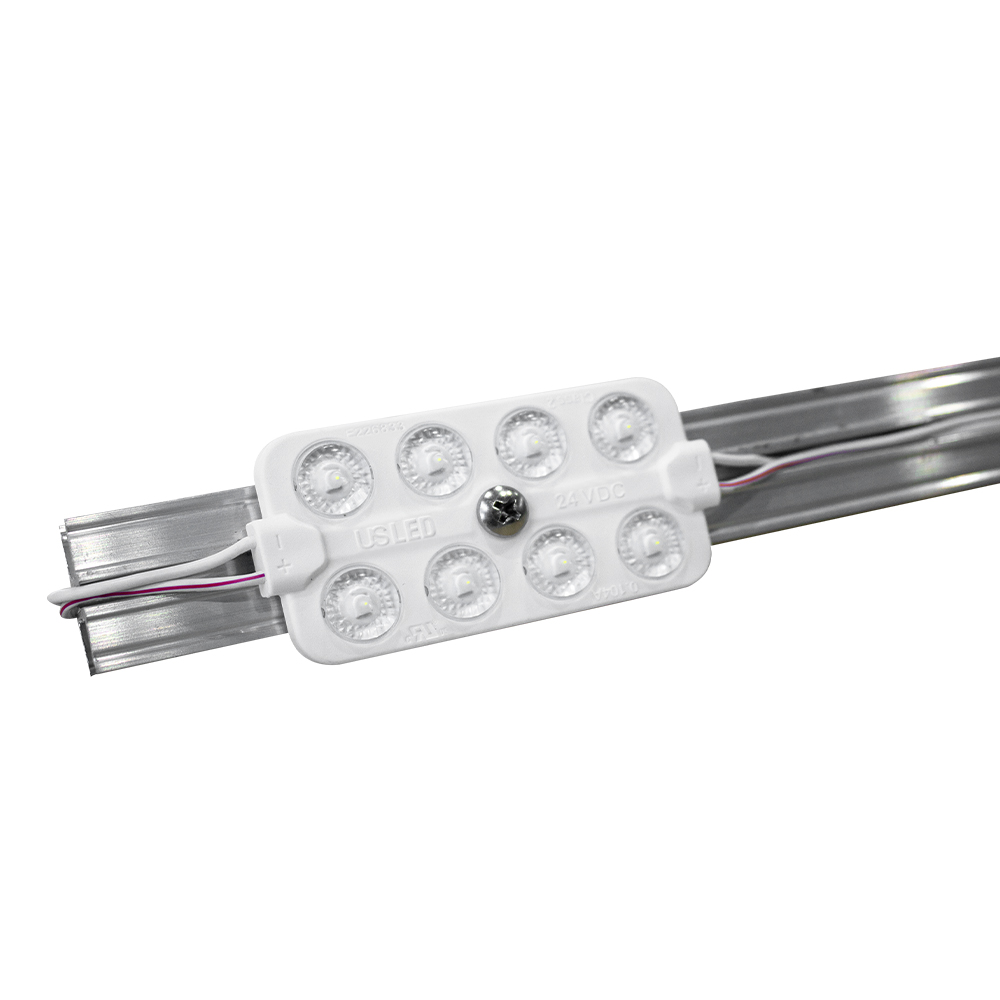

Single-sided TDXL2 dimensions: 3.30”x1.61”x0.157”
-

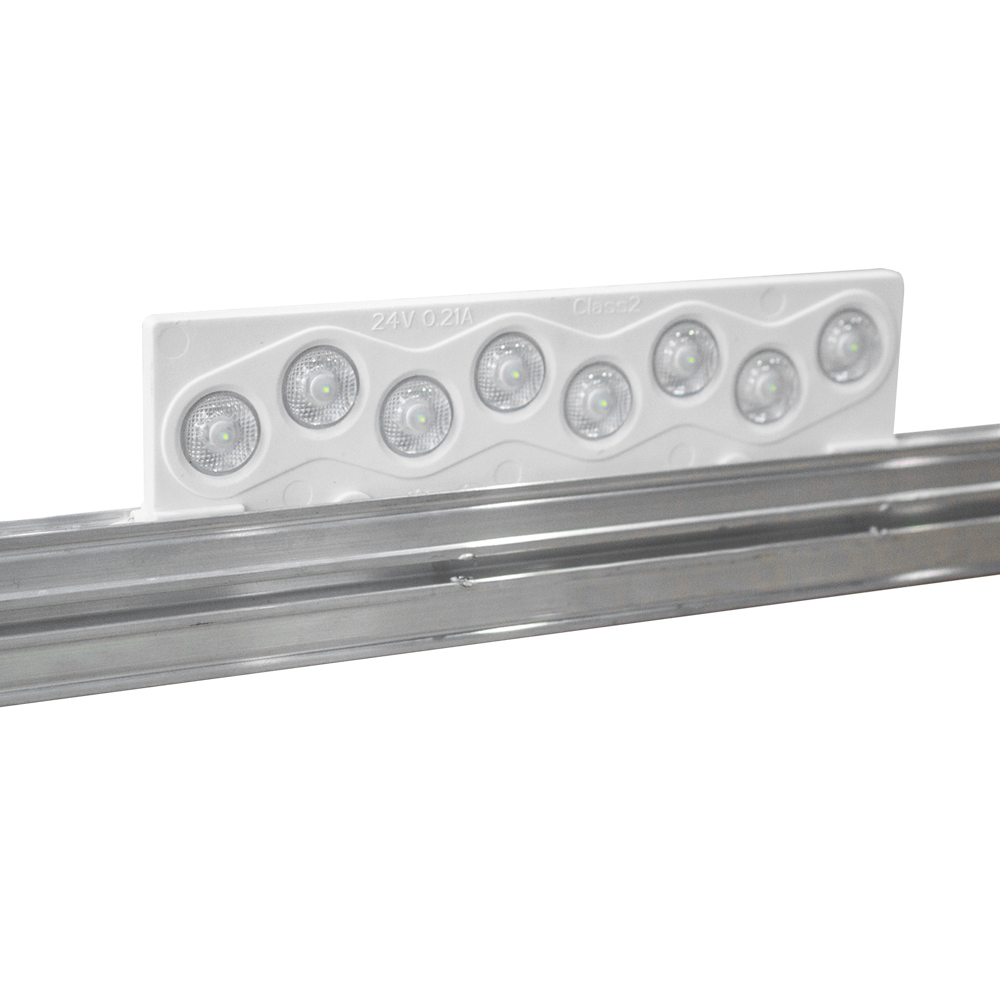

Double-sided TDXL2 dimensions: 5.59”x1.57”x0.307”
Electrical
-
24VDC input.
-
0-10V dimming available via controller accessory (sold separately).
-
Operating temperature: -40°C to 55°C (-40°F to 131°F).
Optics
-
170° beam angle for wide light distribution.
-
Industry-leading LEDs with 3000K, 4000K, 5000K, & 6500K CCT (minimum 70 CRI).
-
Lumen maintenance: 200,000 hours (L70).
Mounting
-
Hardware included to mount inside existing fluorescent sockets. Includes: (2) L-brackets, (2) Z-brackets, and Phillips round head screws.
Warranty
-
Backed by US LED's industry-leading Ten-Year Warranty.
