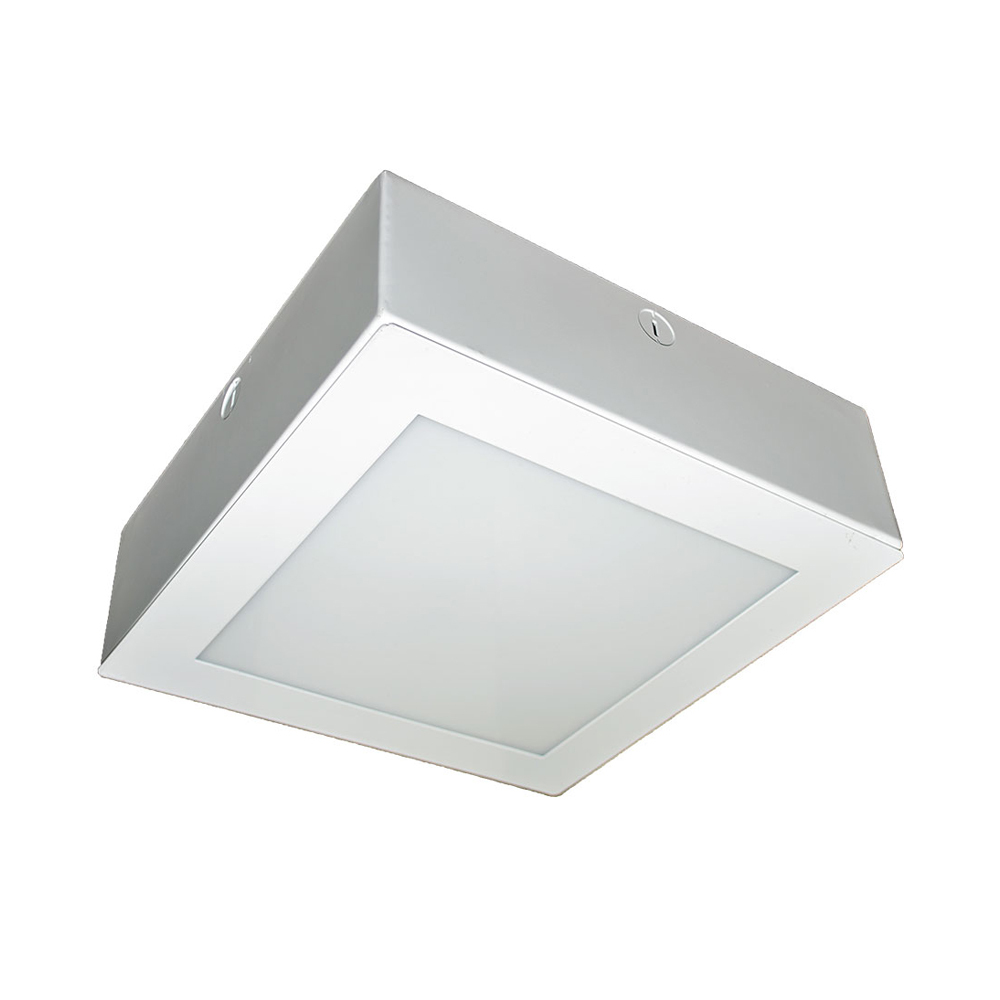

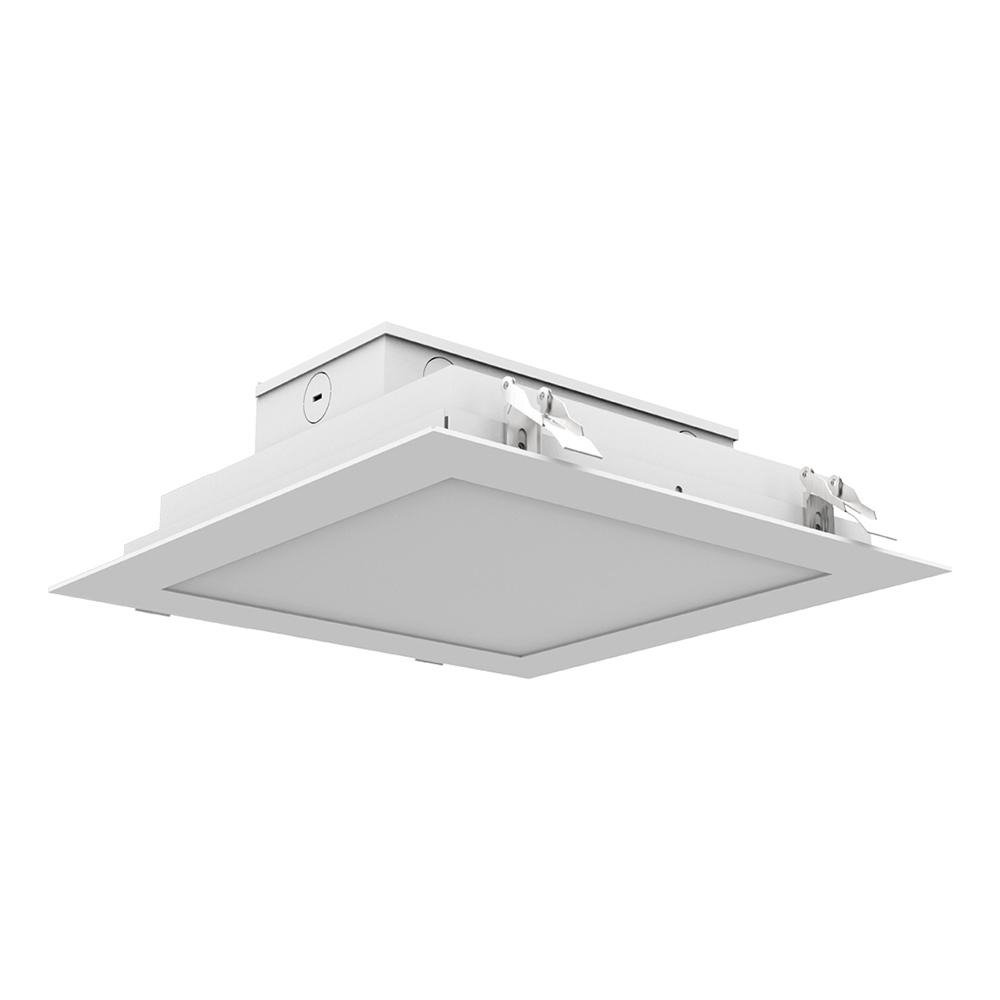

      L-Grid 2EH 1x1

      LED Soffit Canopy Light - Selectable CCT

      • UL Certified
      • DLC Listed
      • 10 Year Warranty
      • RoHS

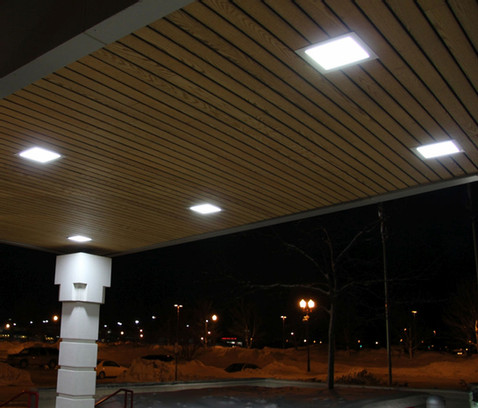

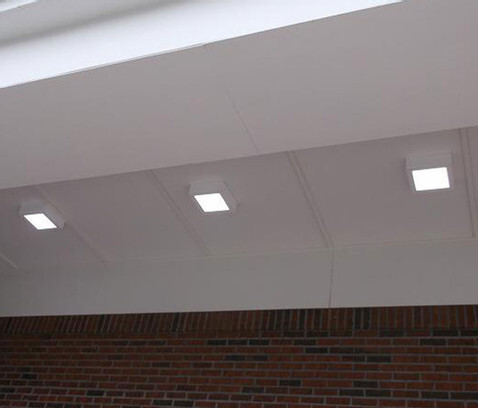

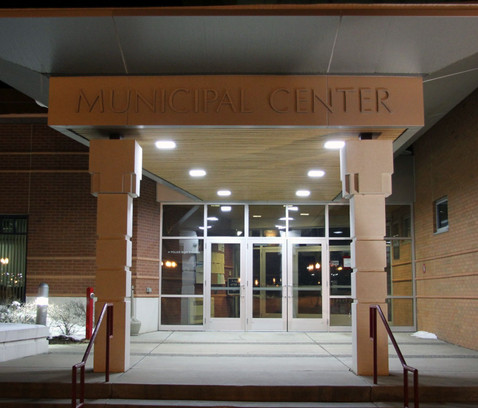

      The L-Grid 2EH 1x1 offers a more efficient way to light covered soffits and canopies without sacrificing performance or appearance. Its compact 1x1 design fits walkways, overhangs, and building entrances. It works well in parking garages and tight ceiling spaces where visibility and reliability matter. The luminaire provides edge-to-edge illumination without visible hotspots or pixelation. The refreshed design adds stronger construction, improved lighting performance, and selectable CCT. The adjustable clips for recessed mounting and updated accessories make installation faster. With the L-Grid 2EH 1x1, you’ll improve visibility and reduce operating costs in busy areas.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      3000K, 3500K, 4000K, 5000K
      Max Lumens:
      4594
      Voltage:
      120-277V
      Wattage:
      20W, 30W
      Additional Options:
      Photocell, Emergency Battery Backup
      Accessories:
      Drywall Mounting Kit, Surface Mount Kit

      Product Details

      Key Features

      • Energy-efficient LED 1x1 luminaire designed for covered soffit and canopy applications.

      • Enhanced lighting performance with smooth, uniform illumination and reduced visible hotspots.

      • Easier installation with improved adjustable mounting clips and surface-mount box.

      • Low-profile design, only 3.2” high, provides flexibility for tight spaces (Type IC).

      Construction

      • .042” cold rolled steel frame helps protect internal components while improving heat dissipation.

      • Corrosion-resistant white powder coat finish provides a clean appearance with added protection in covered exterior applications.

      • Frosted white lens shields the LEDs while delivering uniform light distribution.

      • Lightweight construction; 5.9 lbs. (2.7kg).

      Electrical

      • 120-277VAC input; 0-10V dimming available.

      • System power factor >90% and THD <20%.

      • Remote photocell options available for automatic dusk-to-dawn operation.

      • Operating temperature: -30°C to 45°C  (-22°F to 113°F).

      Optics

      • Edge-to-edge illumination with no visible bright spots or pixelation.

      • Type VS distribution for uniform illumination.
        Selectable CCT for field adjustment: 3000K, 3500K, 4000K, and 5000K CCT (≥80 CRI).

      • Lumen Maintenance: 200,000 hours (L70).

      Mounting

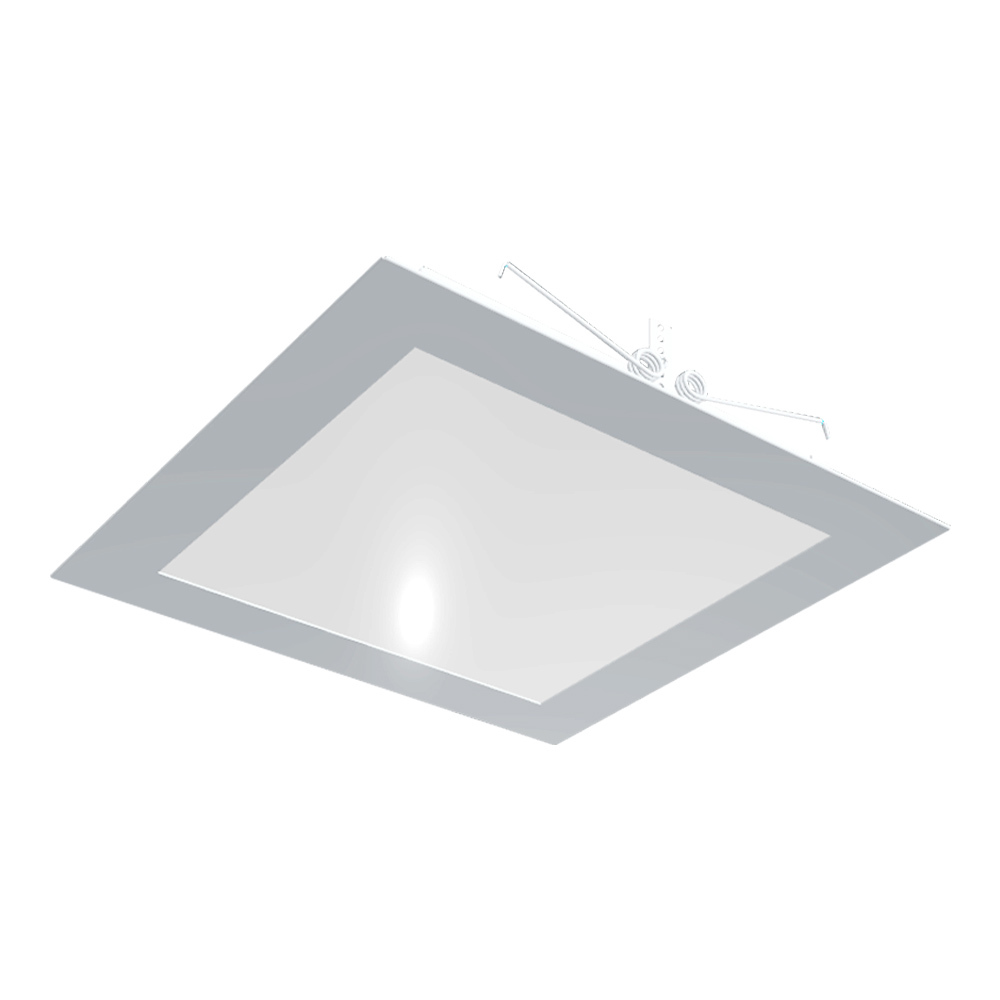

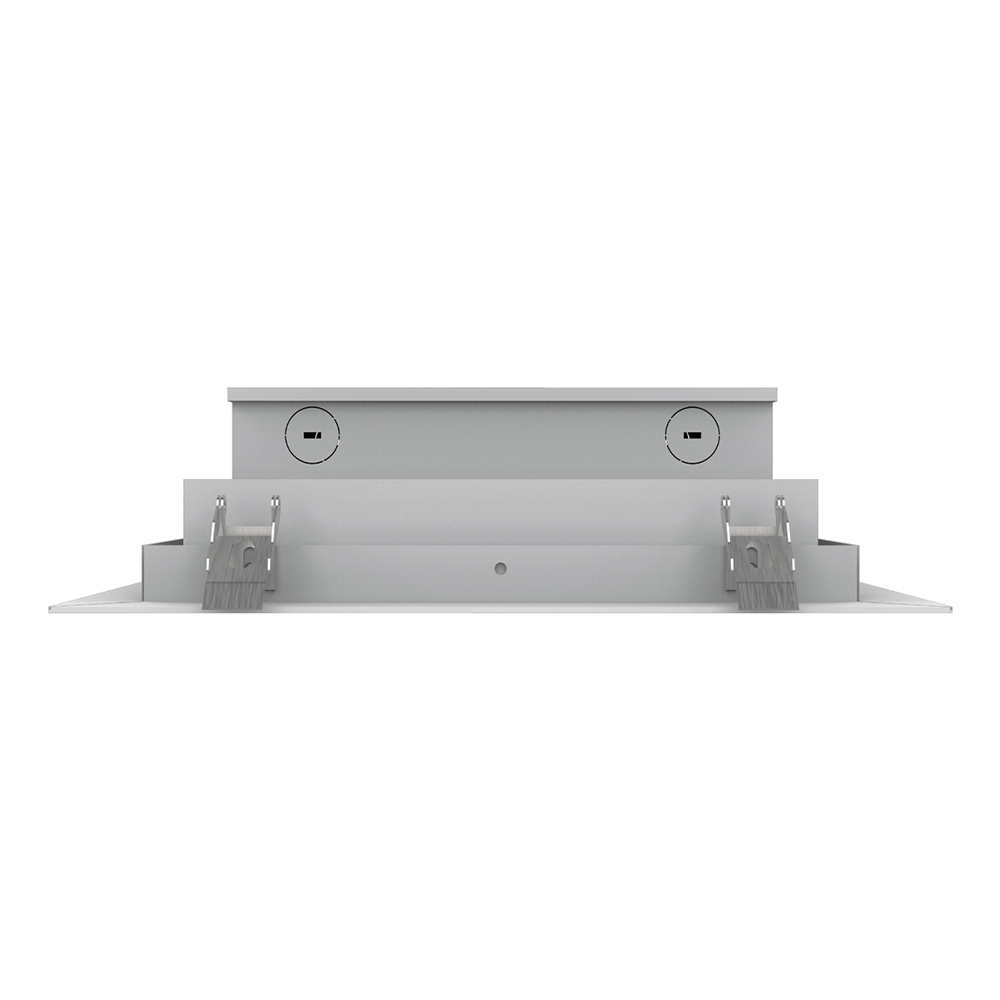

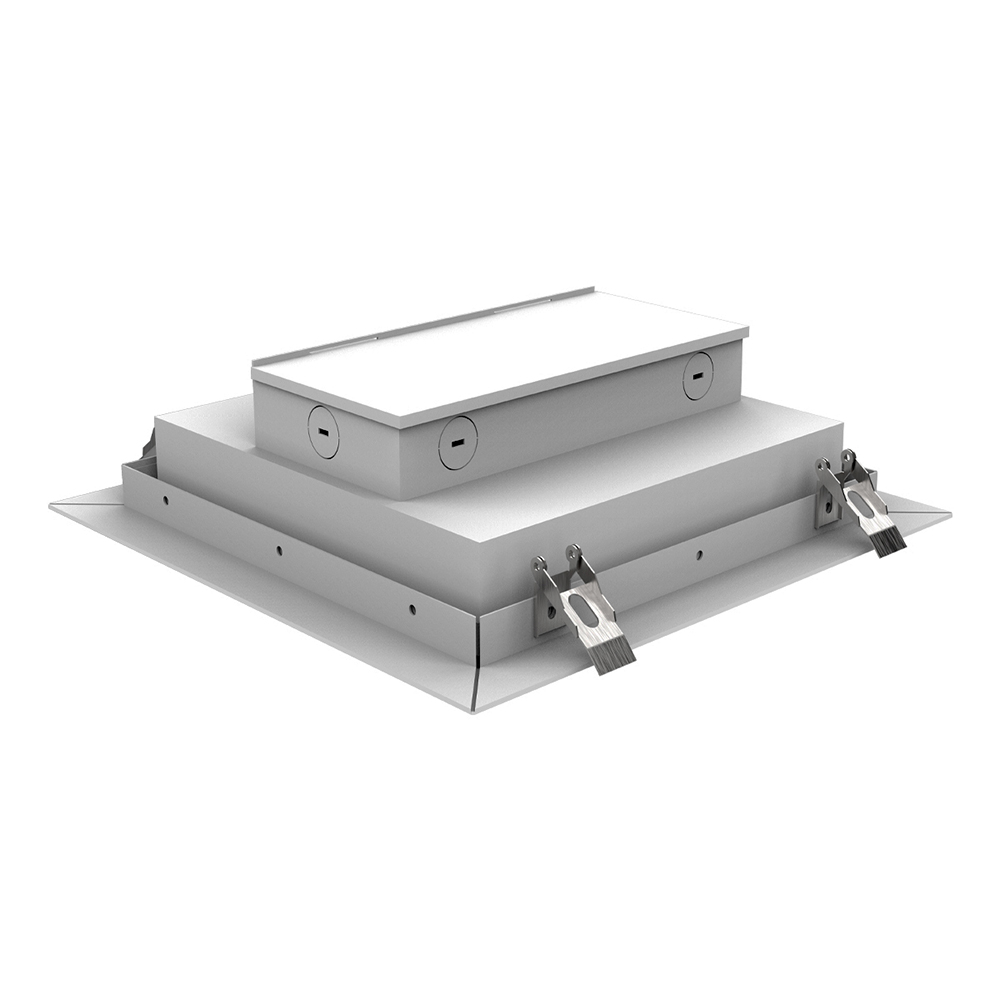

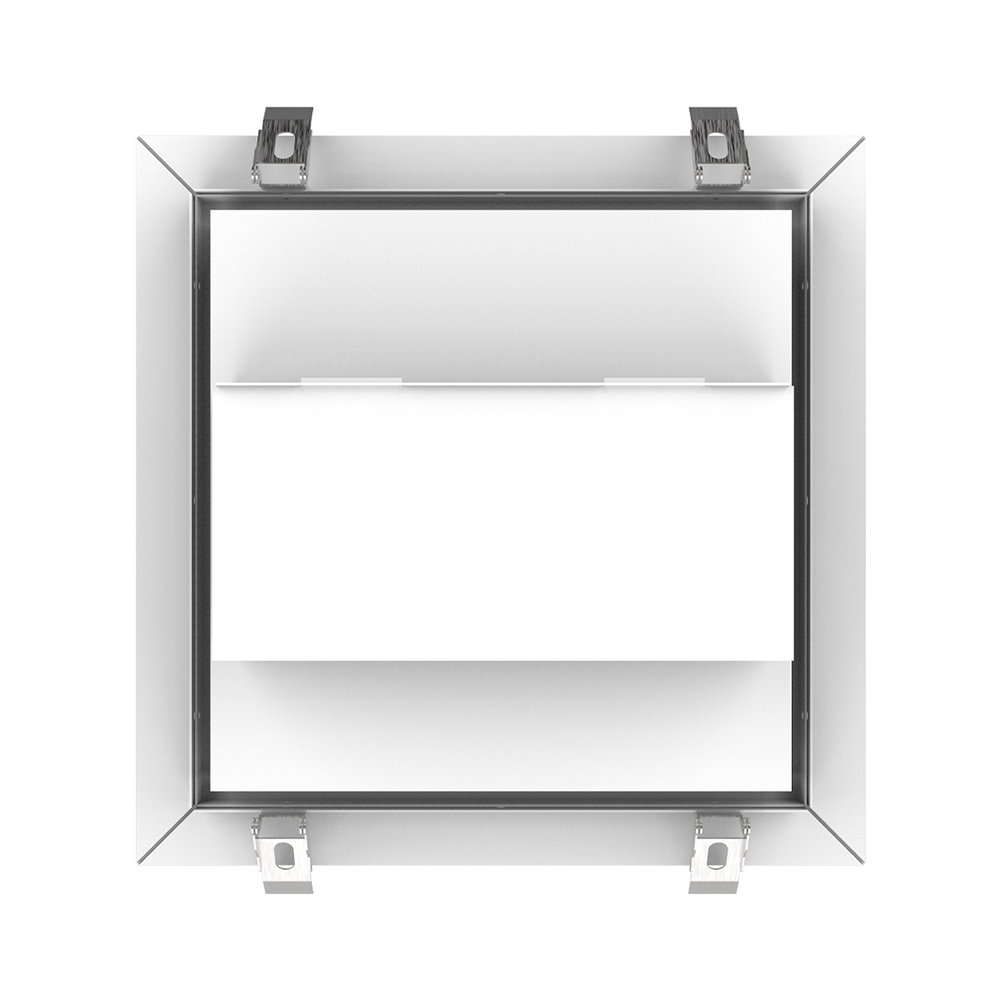

      • Standard recessed mounting with adjustable mounting clips that help simplify positioning and secure placement.

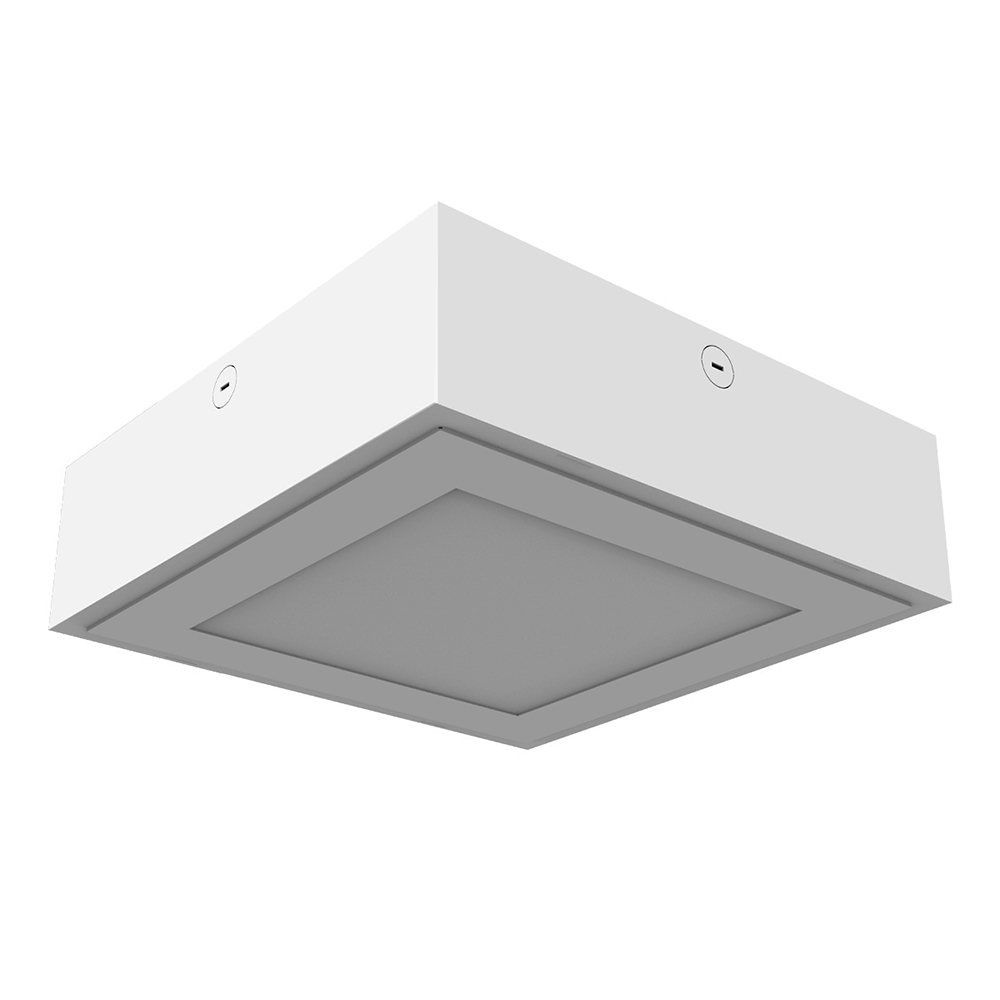

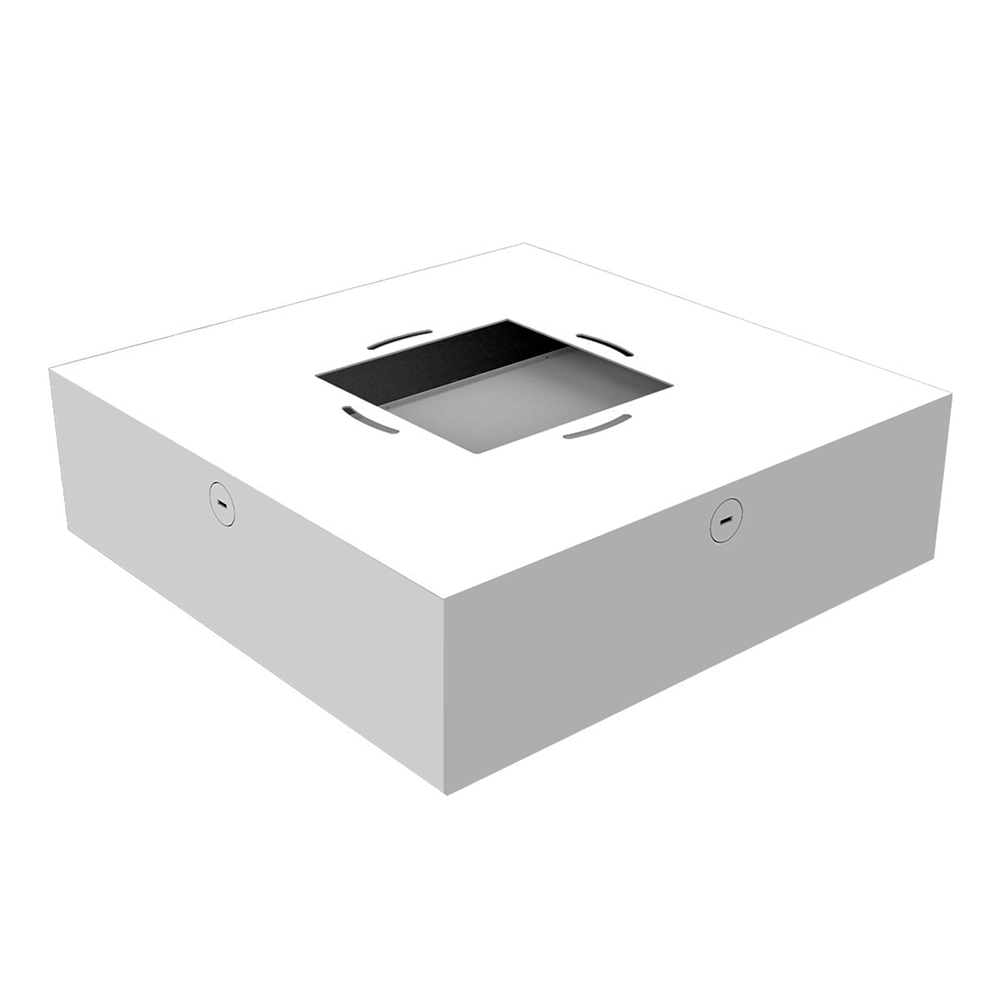

      • Surface-mount kit and new construction rough-in kit accessories available.

      Warranty

      • Backed by US LED's industry leading Ten-Year Warranty.

      Stocked Configurations

      GTR2-11EH in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
