CB30 Modules
LED Edge Lighting

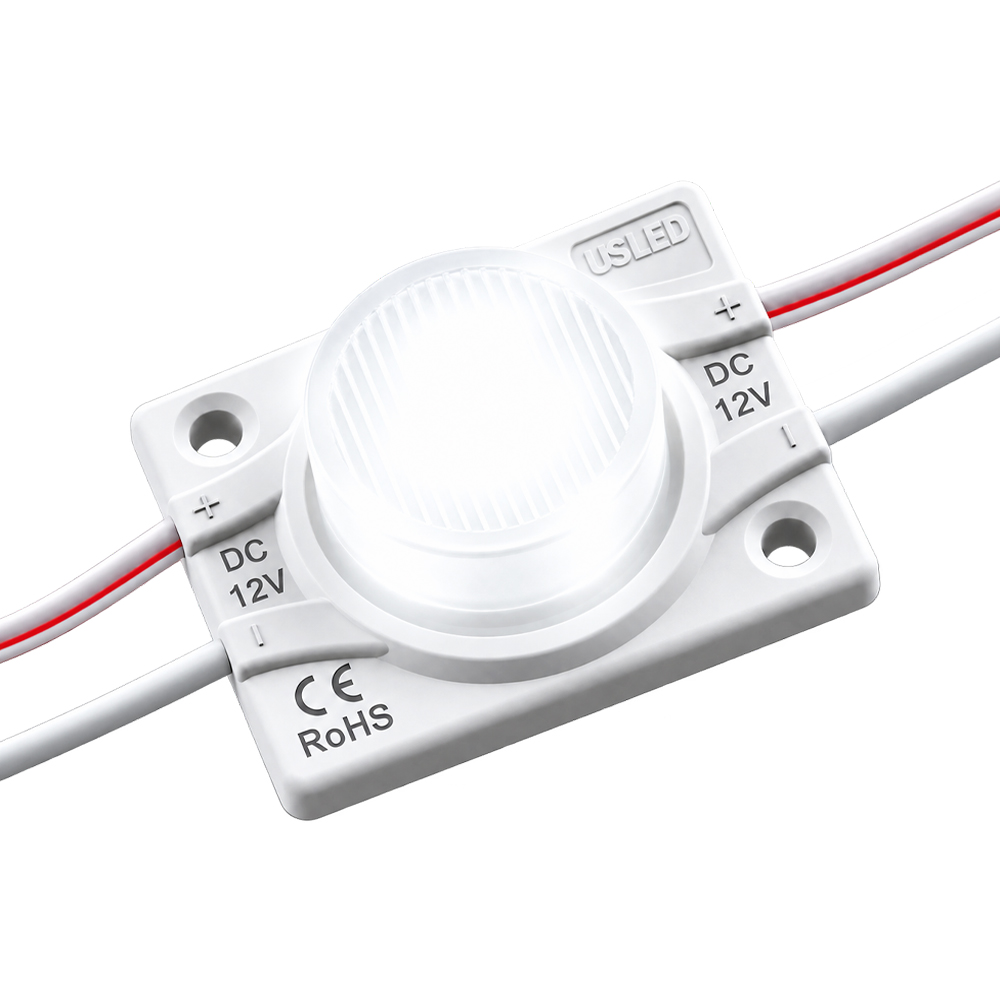

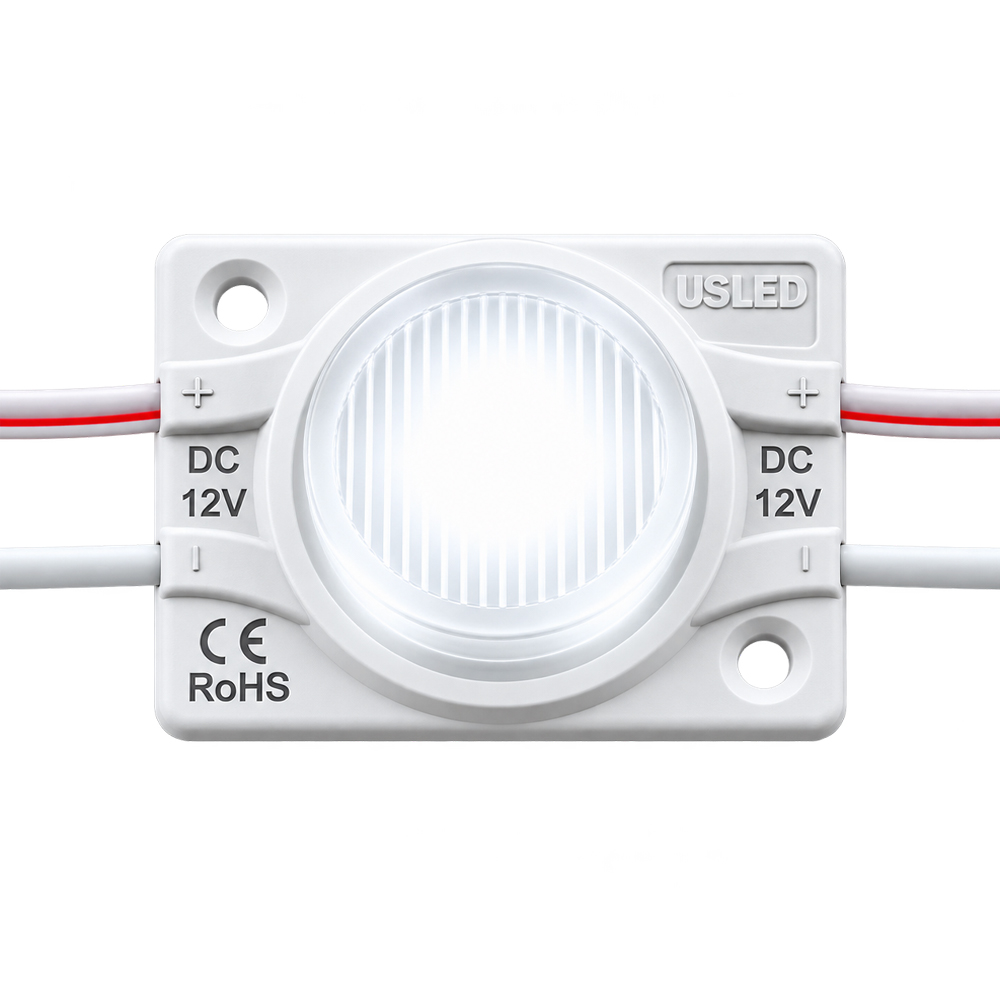

CB30 LED edge lighting modules deliver bright, consistent illumination for cabinets, light boxes, and other sign lighting applications. High-efficiency LEDs and advanced optical lensing create an edge-focused beam pattern that distributes evenly across cabinets of different depths and sizes. Its compact design supports fast installation and works in side- and return-mount applications. With cost-effective performance and an IP66 rating, CB30 modules are a go-to solution for a wide range of projects.
Product Specs
Product Details
Key Features
-
Ultra-Long-Life: LED modules provide exceptional illumination at excellent value.
-
Mounting Versatility: Ideal for 4”-8” deep cabinet/box signs and useful for installation along the sides or returns.
-
Convenient Configuration: 20 modules per string for straightforward project planning.
-
Module Spacing: 188mm (7.40 in.) CTC.
Construction
-
Module Housing: White housing with fully integrated heat sink for thermal management.
-
IP66 Rated: Suitable for dry/damp and wet locations (water resistant, non-submersible).
-
High-Transmittance Lens: Maximizes usable light output for efficient illumination.
-

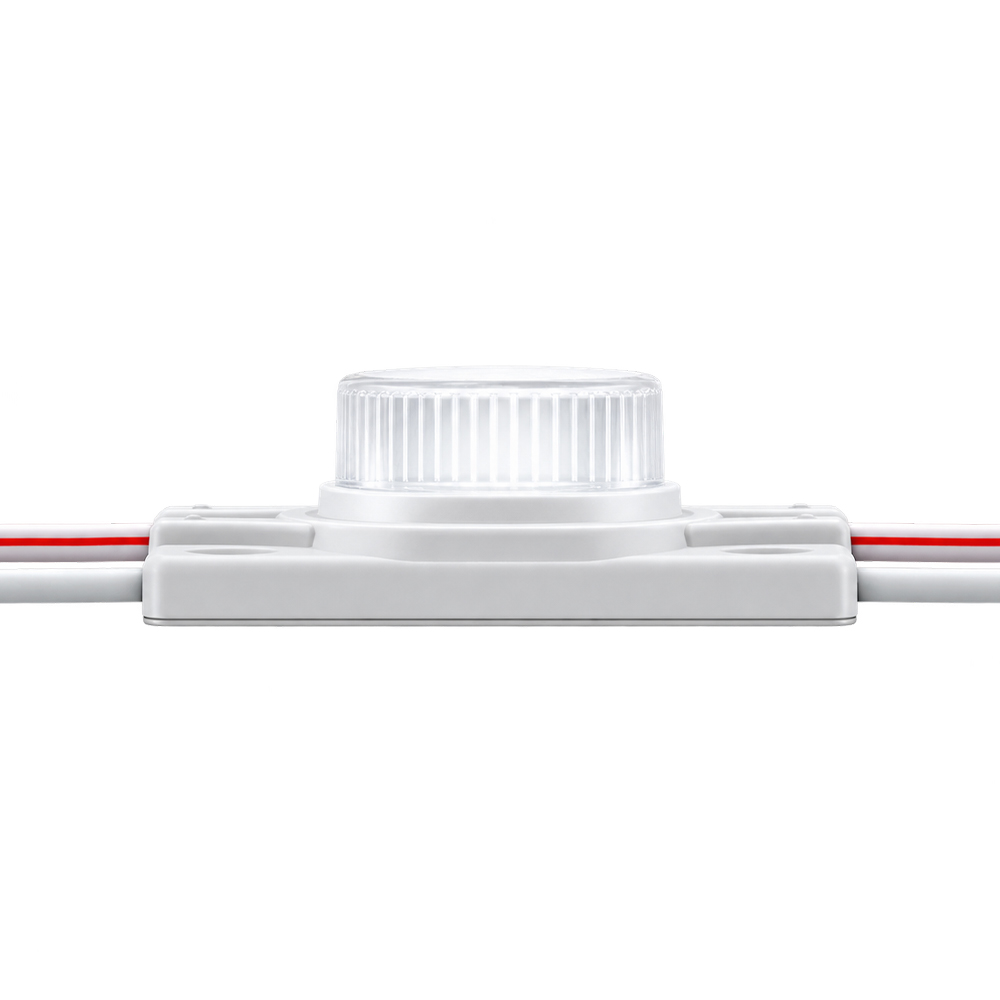

Module Dimensions (LxWxH): 1.48 in. x 1.16 in. x 0.54 in.
Electrical
-
Voltage: 12 VDC constant voltage.
-
Operating Temperature: -25°C to 50°C (-13°F to 122°F).
-
The module chain can be cut and separated between individual LED modules.
Optics
-
Colors/Color Temperature: 4000K, 5000K, and 6500K CCT (minimum 70 CRI).
-
Beam Angle: 18°x40° optical lens technology.
-
Lumen Maintenance: 200,000 hours (L70).
Mounting
-
Easy Mounting: Peel-and-stick VHB Tape or mechanical screw fastening.
Warranty
-
Backed by US LED’s industry-leading Ten-Year Sign Lighting Warranty.
