      Apex Select

      LED Recessed Downlight - Selectable CCT & Wattage

      • UL Certified
      • e16f1a_95180345fa3a496c964afc0da87e5479~mv2
      • e16f1a_c69b53b295cc455595474787572367e7~mv2
      • RoHS

      The Apex Select (ASD1) is an all-in-one LED downlight solution that delivers both value and performance for retrofits and new construction. It comes standard with selectable wattage and CCT allowing for in-the-field customization. It offers your choice of round or square trim options for a unique look. The Apex Select is an ideal LED lighting solution for restaurants, retail, healthcare, educational facilities, and other commercial applications.

      Data Sheet IES File Installation Guide

      Product Specs

      Color Temperatures:
      3000K, 3500K, 4000K, Selectable CCT
      Max Lumens:
      3158
      Voltage:
      120-347V
      Wattage:
      10W, 15W, 20W, 27W, 34W, 40W
      Additional Options:
      Round Trim, Square Trim

      Product Details

      Key Features

      • Versatile LED downlight engineered for both new construction and retrofit projects.

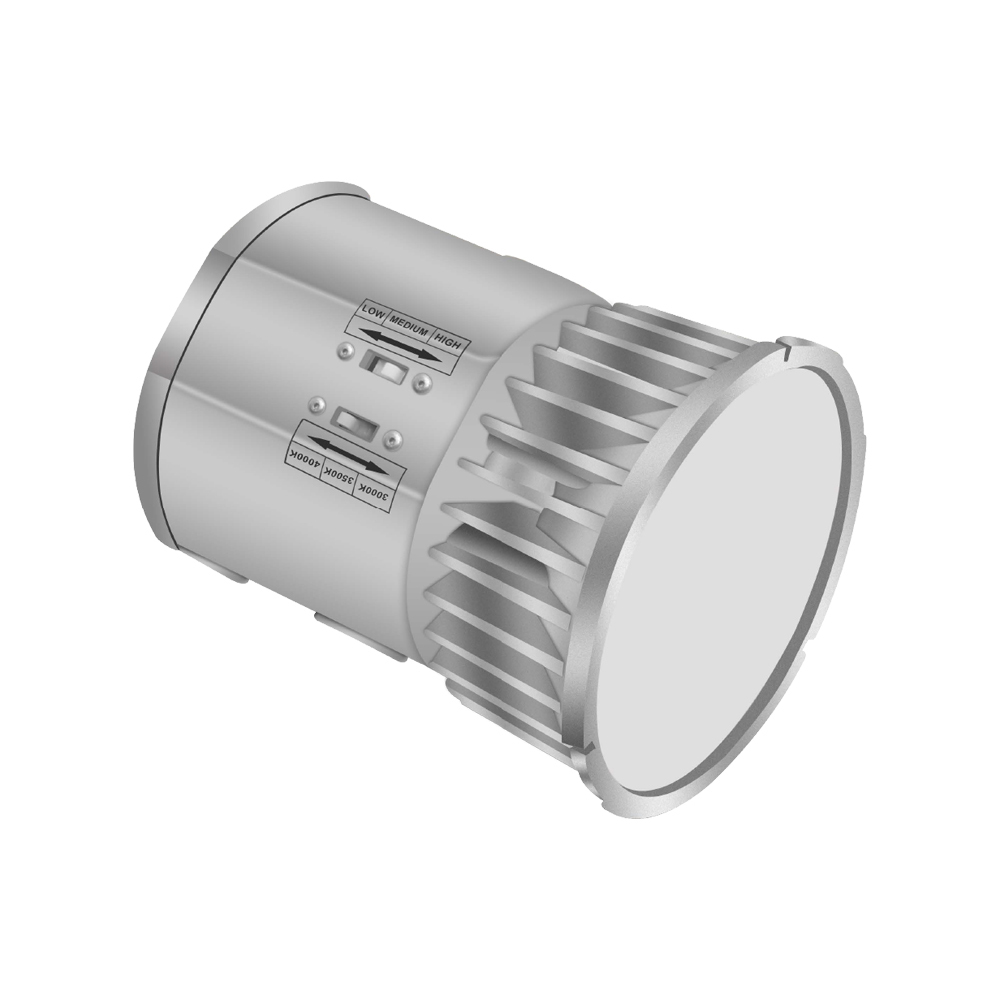

      • Selectable switch for wattage and CCT.

      • Diffused lens helps to provide comfortable, uniform light distribution.

      • Suitable for use in damp locations.

      Construction

      • Die-cast aluminum and polycarbonate housing offers ideal thermal management.

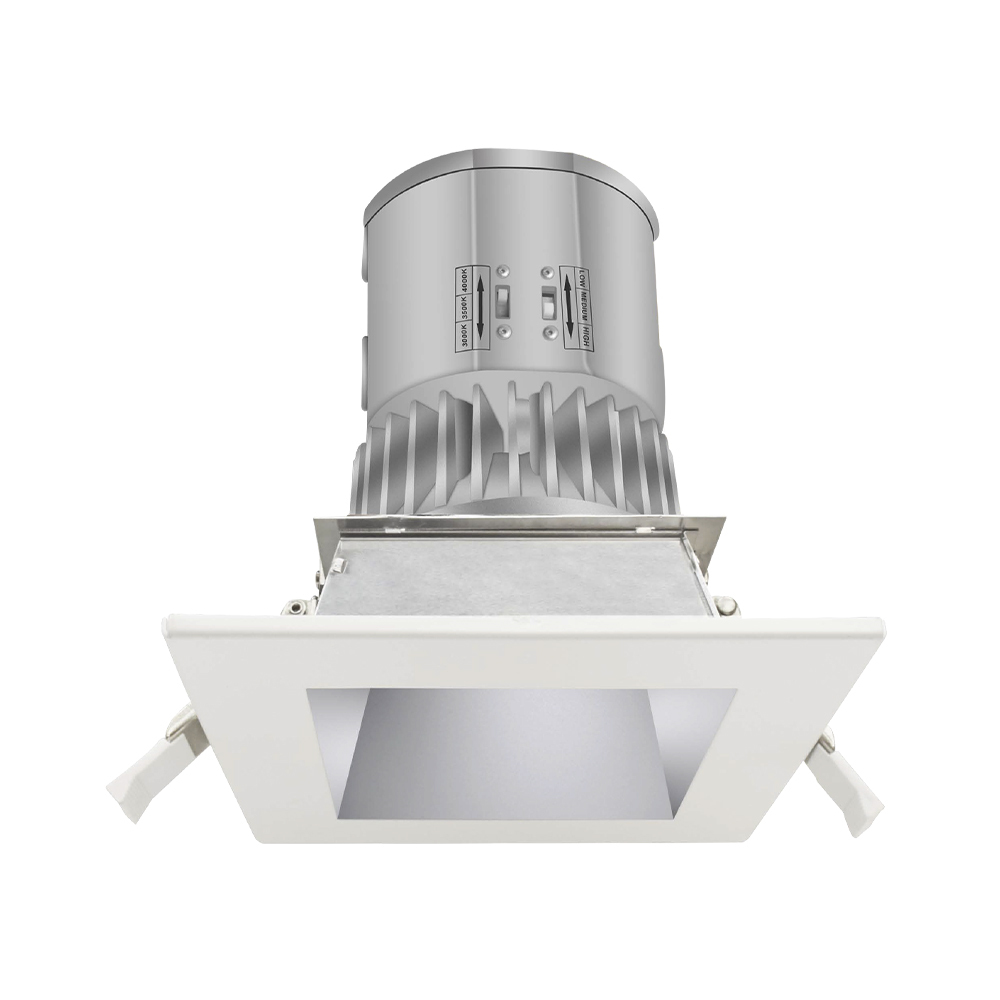

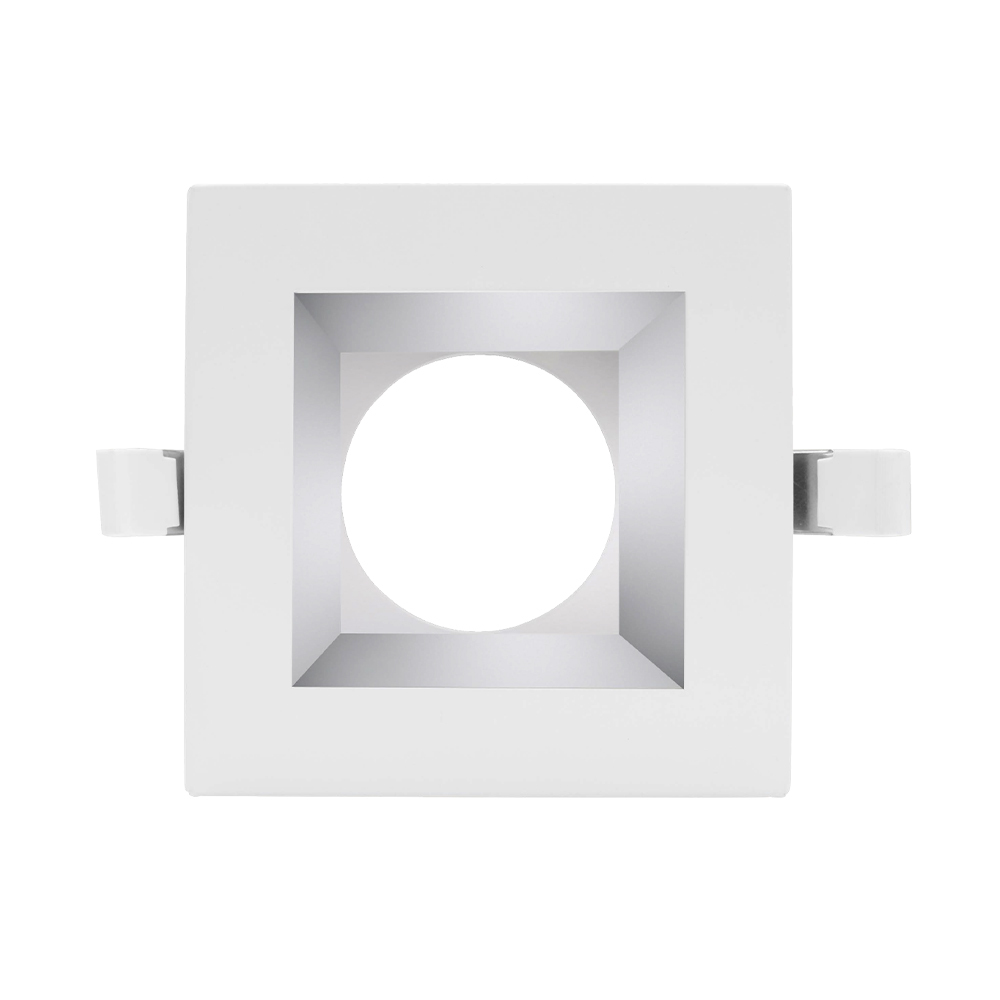

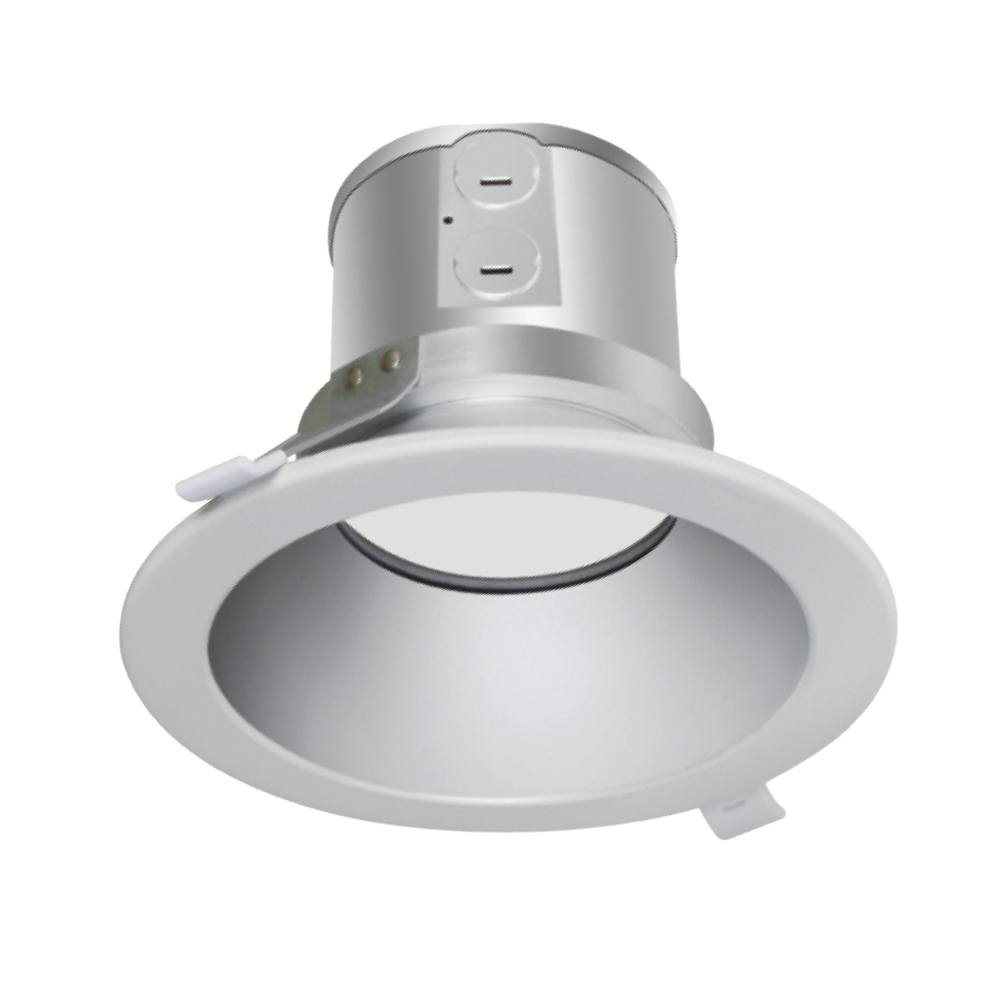

      • Choice of round or square trim options in a white matte finish.

      • Frosted plastic lens reduces glare.

      Electrical

      • 120-347VAC 50/60Hz input.

      • 0-10V dimming standard.

      • Power factor: >0.9 and THD <20%.

      • Operating temperature: -30°C to 40°C (-22°F to 104°F).

      Optics

      • Industry-leading LEDs with selectable CCT via switch in the field: 3000K, 3500K, and 4000K CCT (minimum 80 CRI).

      • 65° Beam Angle

      • Lumen Maintenance: ≥50,000 hours (L70).

      Mounting

      • Mounts directly recessed into the ceiling with integrated spring action clips.

      Warranty

      • Backed by US LED’s industry-leading Ten-Year Warranty.

      Stocked Configurations

      ASD1 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
