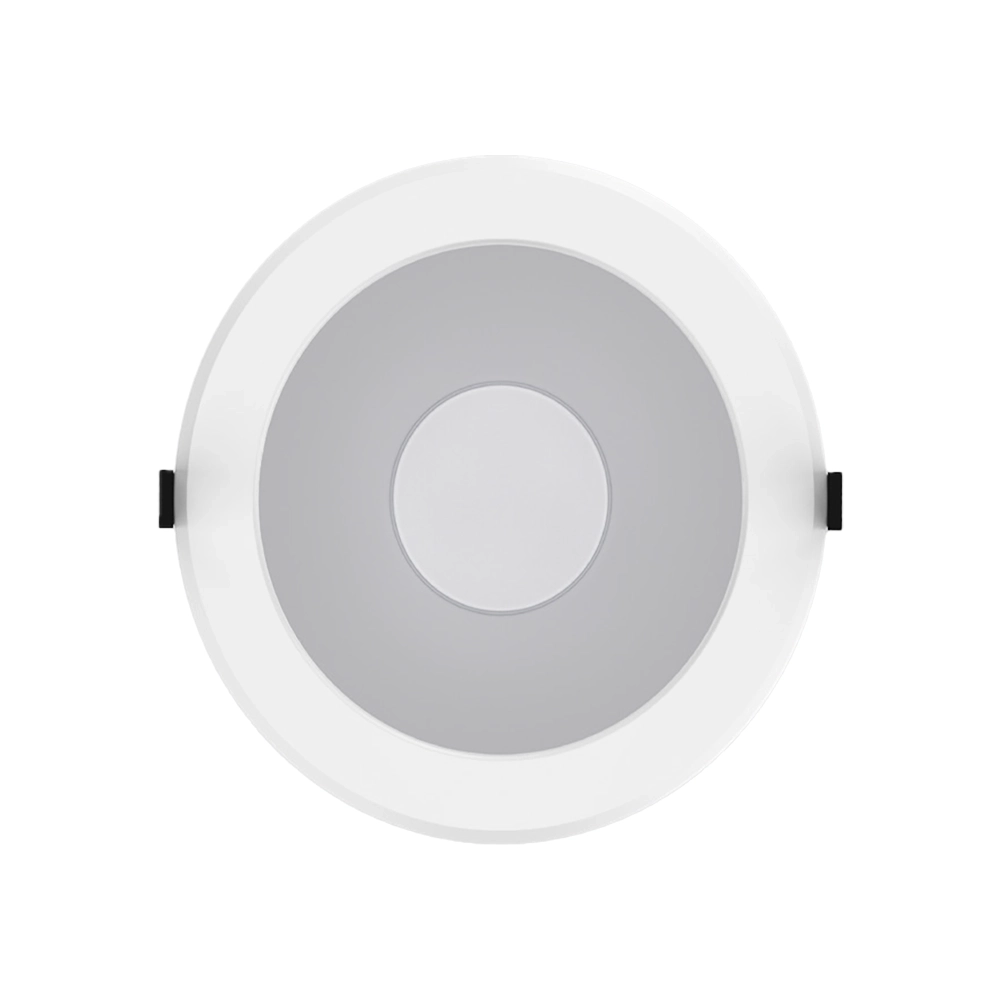

L-Trim SOL XLE2 Select
LED High Output Recessed Downlight with Selectable CCT & Wattage
The L-Trim SOL XLE2 Select (LTR5) is an all-in-one LED downlight solution that delivers both value and performance for projects needing high lumen output. It comes standard with selectable wattage and CCT allowing for in-the-field customization. The L-Trim SOL XLE2 Select is an ideal LED lighting solution for auto dealerships, restaurants, retail, healthcare, educational facilities, and other commercial applications.
Product Details
Key Features
Versatile LED downlight engineered projects needing high lumen output.
Selectable switch for wattage and CCT; minimum 90 CRI.
Diffused lens helps to provide comfortable, uniform light distribution.
Suitable for use in outdoor wet locations.
Construction
Die-cast aluminum and polycarbonate housing offers a deep baffle configuration.
Includes integrated singular trim ring in a white matte finish.
Includes pre-installed flex conduit lead.
Frosted plastic lens reduces glare.
Electrical
120-277VAC 50/60Hz input.
1-10V dimming standard.
Power factor: >0.90 and THD <20%.
Operating temperature: -20°C to 40°C (-4°F to 104°F).
Optics
Industry-leading LEDs with selectable CCT via switch in the field: 3000K, 4000K, and 5000K CCT (minimum 90 CRI).
Two interchangeable beam angles: 50°/70° for 6 in. and 40°/60° for 8 in.
Lumen Maintenance: ≥ 50,000 hours (L70).
Mounting
Mounts directly recessed into the ceiling with integrated spring action clips.
Warranty
Backed by US LED’s industry-leading Ten-Year Warranty.
Stocked Configurations
LTR5 in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
