Saver XL2 Red LED Modules
Channel Letter Lighting
![](https://static.wixstatic.com/media/79034a_27820ebeb97c449193069e85acc61b84~mv2.jpg/v1/fill/w_70,h_70,al_c,q_80,blur_3,enc_auto/79034a_27820ebeb97c449193069e85acc61b84~mv2.jpg)
![](https://static.wixstatic.com/media/79034a_ebc1b9f8b3954d15ae848c341466f8bf~mv2.jpg/v1/fill/w_70,h_70,al_c,q_80,blur_3,enc_auto/79034a_ebc1b9f8b3954d15ae848c341466f8bf~mv2.jpg)
![](https://static.wixstatic.com/media/79034a_923104634a354fe99e6fa28437fd35f9~mv2.jpg/v1/fill/w_70,h_70,al_c,q_80,blur_3,enc_auto/79034a_923104634a354fe99e6fa28437fd35f9~mv2.jpg)
![](https://static.wixstatic.com/media/79034a_6d513ac7c5474efeb921be16c771acee~mv2.jpg/v1/fill/w_70,h_70,al_c,q_80,blur_3,enc_auto/79034a_6d513ac7c5474efeb921be16c771acee~mv2.jpg)

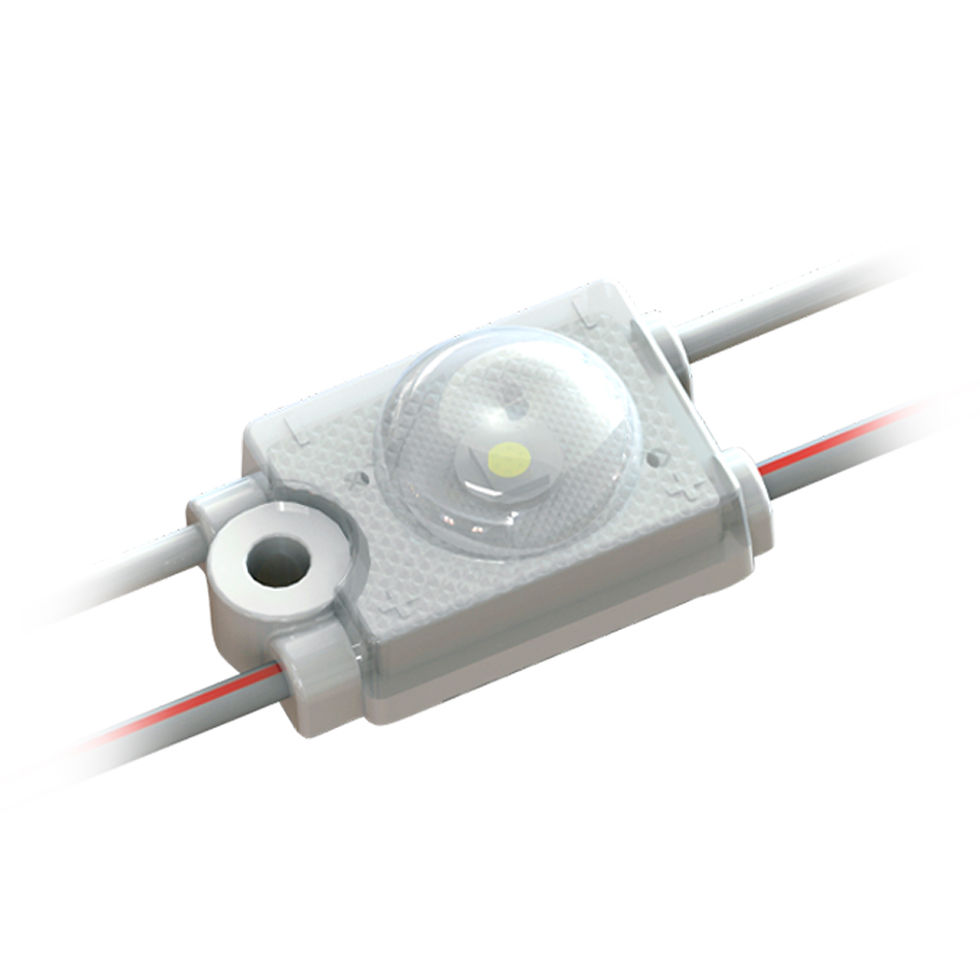

Saver XL2 Red (SXL2) is US LED’s next generation of channel letter lighting, maximizing performance with a minimum presence. Now accommodating more modules per power supply, Saver XL2’s proprietary optic provides even greater distribution than ever before for more efficient installations.
Product Details
Key Features
Ultra-long life LED modules provide high performance illumination in a small form factor.
Ideal for applications as shallow as 1” depth.
Available in white LEDs only.
Construction
Modules are IP67 rated to prevent against penetration of dust and moisture.
Dimensions: 1.00” x 0.63” x 0.236”.
Electrical
12VDC input.
0-10V dimming available via controller accessory (sold separately).
Operating temperature: -40°C to 60°C (-40°F to 140°F).
Optics
Industry-leading Red LEDs (623nm).
175° beam angle for ultra-wide light distribution.
Mounting
Modules mounted using peel-and-stick 3M VHB tape.
Warranty
Backed by US LED’s industry-leading Ten-Year Warranty.
Stocked Configurations
SXL2 Red in-stock configurations are subject to change at any time. Please contact customer service for the most recent list of stocked configurations.
